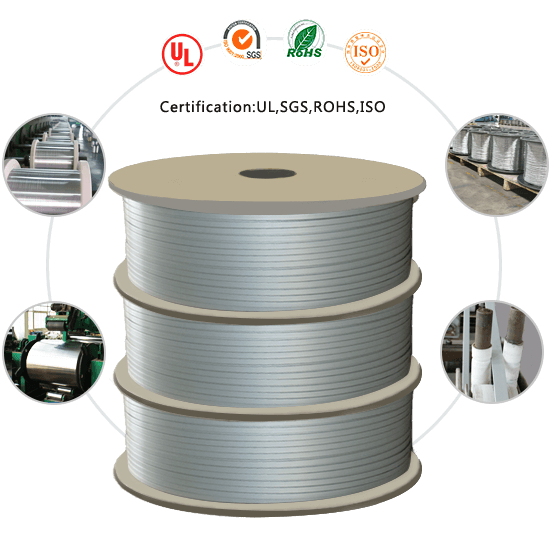

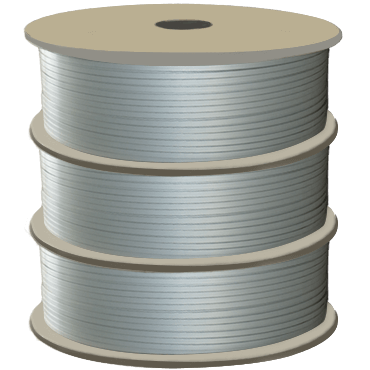

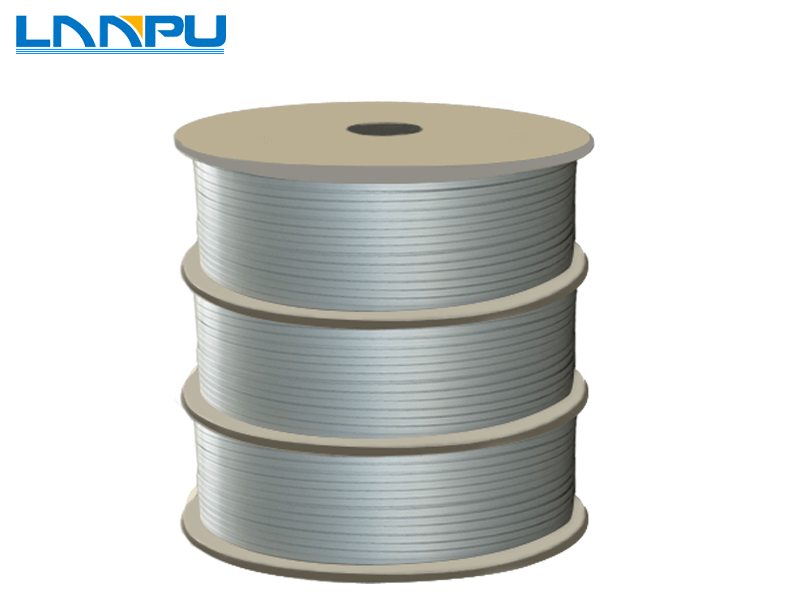

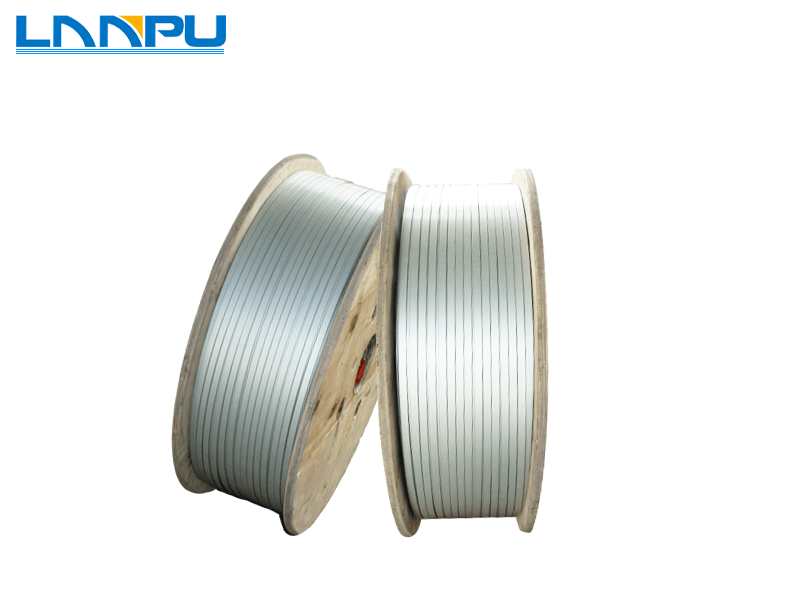

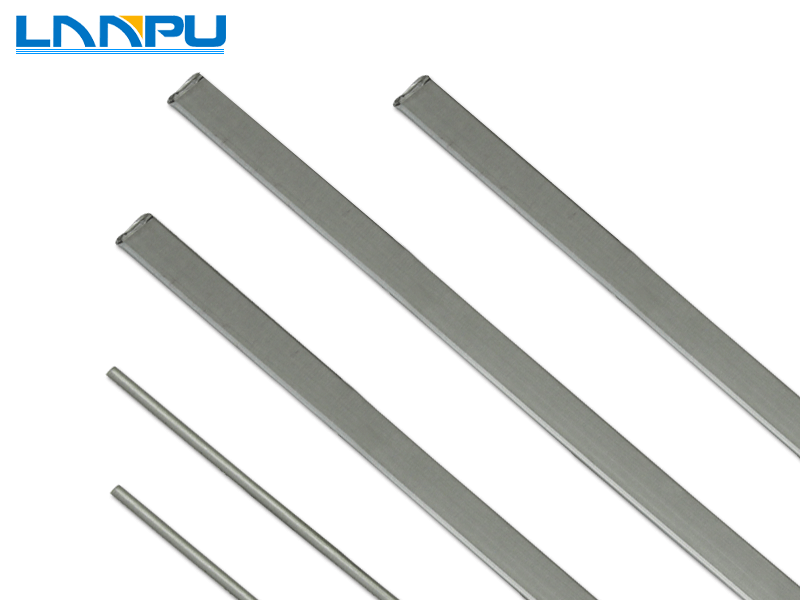

Oxidative Round/Flat Aluminum Wire(Strip)

  • DiameterRange (mm): round: 1.5-7.2mm flat: a:1.8-3.0mm b:4-20mm
  • Temperature Class (C): 240
  • Standard: GB
  • Package: 70kg Wooden Bobbin or according to customer requirements.

We're here to help:Easy ways to get the answers you need.

Oxidative Round/Flat Aluminum Wire(Strip)

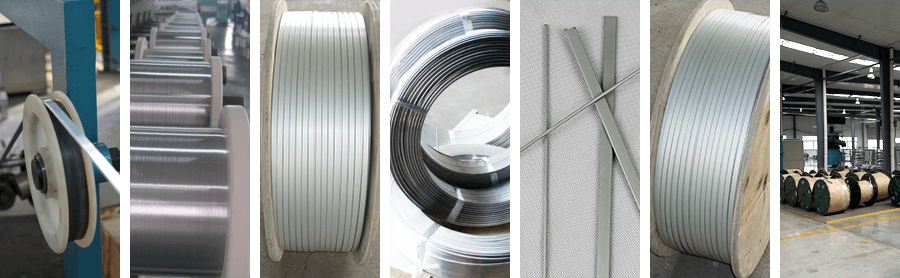

Production Process
Extrude & Draw Stretch the Thread Ultrasonic Clean
Oxidative Toast Spool

Size: round:1.5-7.2mm
          flat: a:1.8-3.0mm b:4-20mm
Thermal Class:240

Production Characteristics

  • 1.Our Oxidative Round/Flat Aluminum Wire(Strip)’s temperature class can reach 240.

  • 2.Our Oxidative Round/Flat Aluminum Wire applies to high-tech technology and reduce cost.

  • 3.Our Oxidative Round/Flat Aluminum Wire(Strip)’s insulation layer is AL2O3. The layer has smooth surface, no abrasion and uniform color.

  • 4. Our Oxidative Round/Flat Aluminum Wire(Strip) can apply for low-voltage windings which uses with high temperature, bad environment and heat dissipation difficulty.

  • 5. Our Oxidative Round/Flat Aluminum Wire(Strip) has fine insulation layer, good heat resistance and stable insulation.

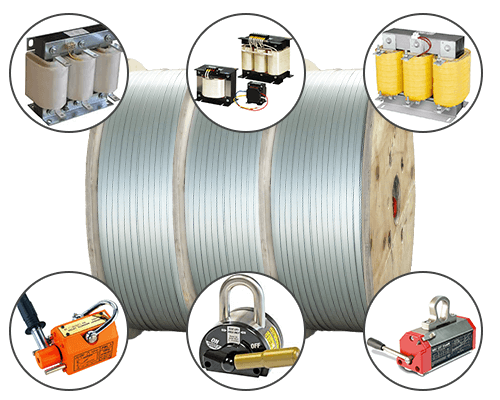

Application
The Application of oxidative round/flat aluminum wire
Typical application include:
Lifting electromagnets/Reactors/Other low-voltage and high current electromagnetic windings.

Packing
Plastic spool or wooden spool, flat wire length are customizable;
The usual spool specifications :
70kg Wooden Bobbin or according to customer requirement
About The Packing, We Can According To Customers' Requirement!
Test of Main technical
The following is mian technical test;
The set standards according to customers’ requirement.
Besides,We Providing OEM,Please pay attention to that.
Item Requirement of the standards
Insulation Thickness

≥0.005mm

Electrical resistivity <0.02785 Ω mm²/m
Breakdown voltage 160V
