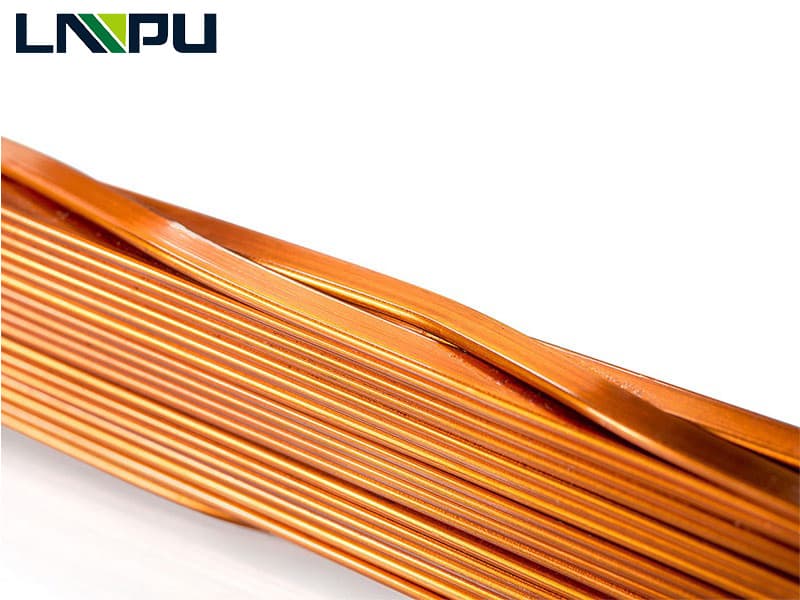

Continuously Transposed Conductors
  • Continuously Transposed Conductors
  • Continuously Transposed Conductors
  • Continuously Transposed Conductors
  • Continuously Transposed Conductors
  • Continuously Transposed Conductors

Continuously Transposed Conductors

  • number of strips: 7-49
  • single dimension: thickness of conductor a : 1.00-3.15mm width of conductor b : 3.00-12.50mm
  • suggested ratio of width and thickness: 2.5
  • layers at one time. Max thickness of CTC: 80mm (excluding insulation)
  • max width: 26mm (excluding insulation)
  • Max.Height of CTC bundles: 80mm (excluding paper insulation)

We're here to help:Easy ways to get the answers you need.

Continuously Transposed Conductors

Production Process
Extrude & Draw Stretch the Thread Ultrasonic Clean
Panit Toast Spool

CTC Cable

CTC features

number of strips: 7-49
single dimension: thickness of conductor a : 1.00-3.15mm; width of conductor b : 3.00-12.50mm

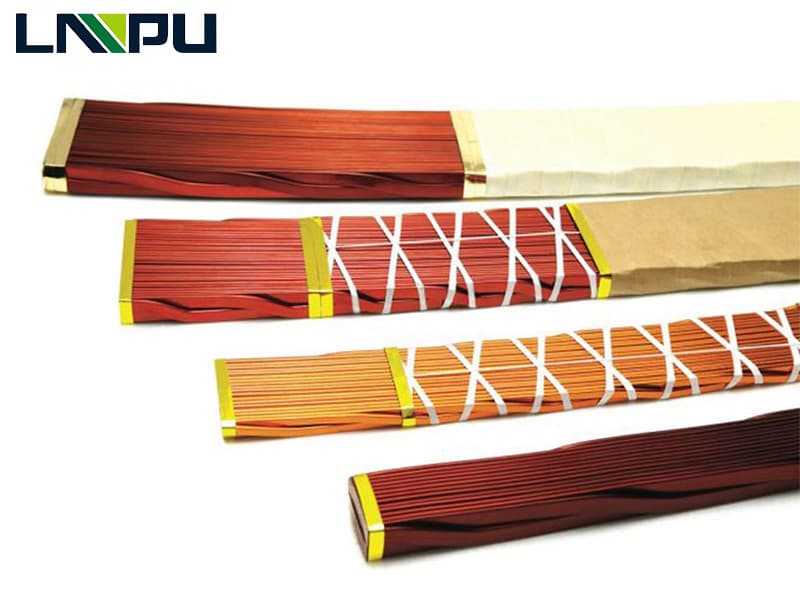

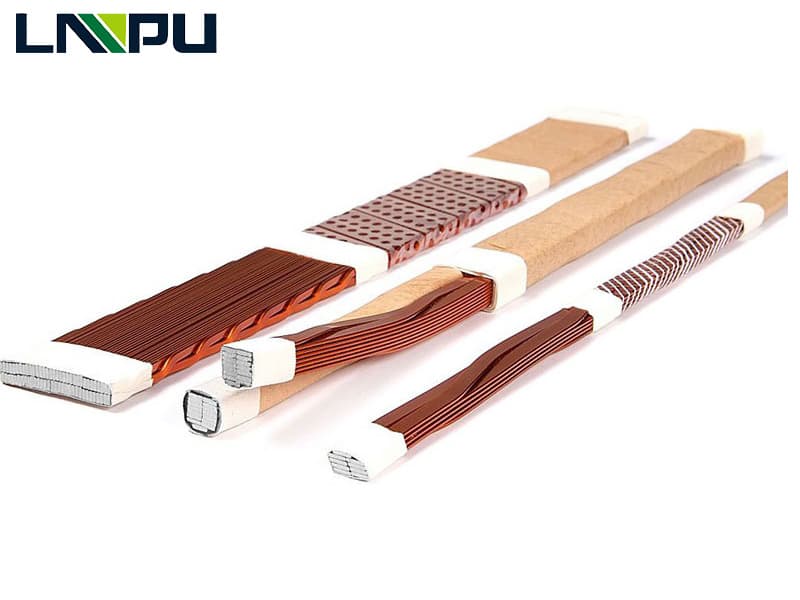

Main Products:
Polyvinyl acetal enameled with paper insulation CTC
Polyvinyl acetal enameled over coated bond able epoxy resin with paper insulation CTC
Polyvinyl acetal enameled with paper insulation 、hardened copper CTC

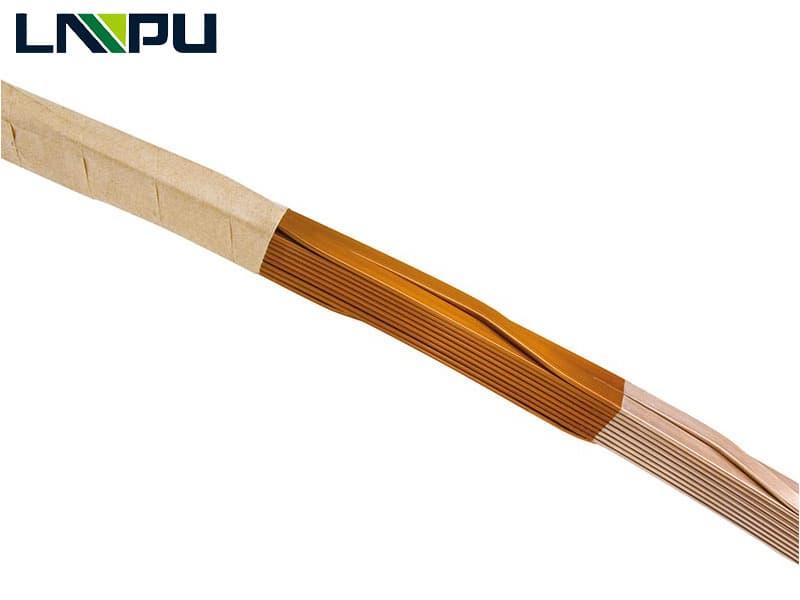

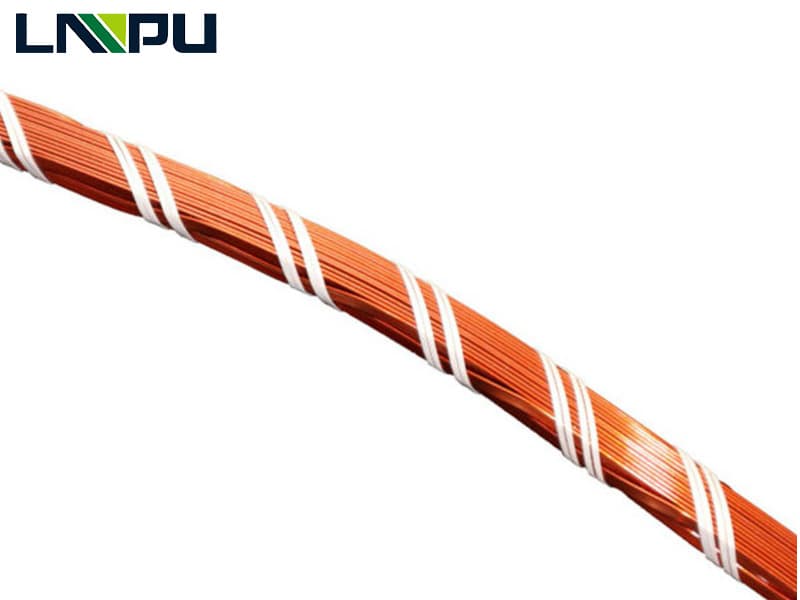

Polyester net covered CTC
Polyestermide enameled with Nomex insula tion paper CTC
Polyester fibre non-weaving modified polyes-ter enameled CTC
Other Names:
Enameled Aluminum Winding Wires
Enamel Insulated Aluminum Wire
Double Enameled Aluminum Wire

Production Characteristics

  • 1, Our Enameled Flat（Rectangular）Aluminum Wire has good heat resistance, high solvent resistance and excellent hydrolytic resistance.

  • 2.Our Enameled Flat（Rectangular）Aluminum Wire has good corrosion resistance, good scuff resistance, excellent flexibility and adhesion.

  • 3, Our Enameled Flat（Rectangular）Aluminum Wire has good conductivity and smooth surface processed by advanced extrusion equipments.

  • 4, Our Enameled Flat（Rectangular）Aluminum Wire’s temperature class can reach more than 240.

  • Insulation: ELANTAS

  • Intelligent on-line monitoring equipment

Application
The Application Of CTC conductor
Typical application include:
Large-scale oil-immersed power transformers, reactors and large-capacity dry type transformers.

CTC application

CTC cable

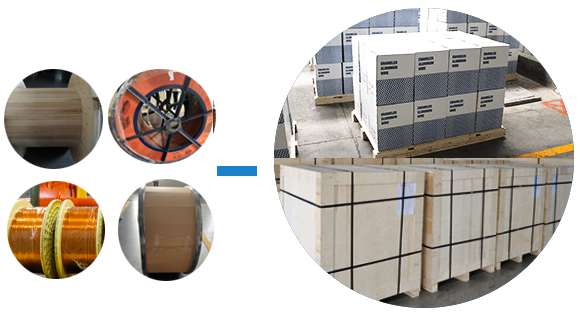

Packing

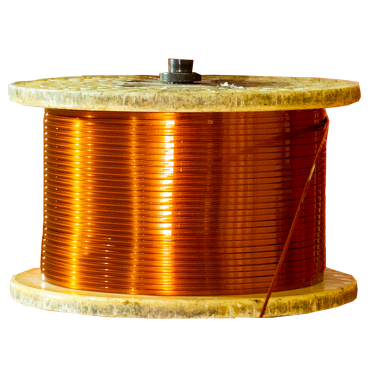

Steel spool or wooden spool, CTC Conductor length are customizable;
About The Packing, We Can According To Customers' Requirement!
