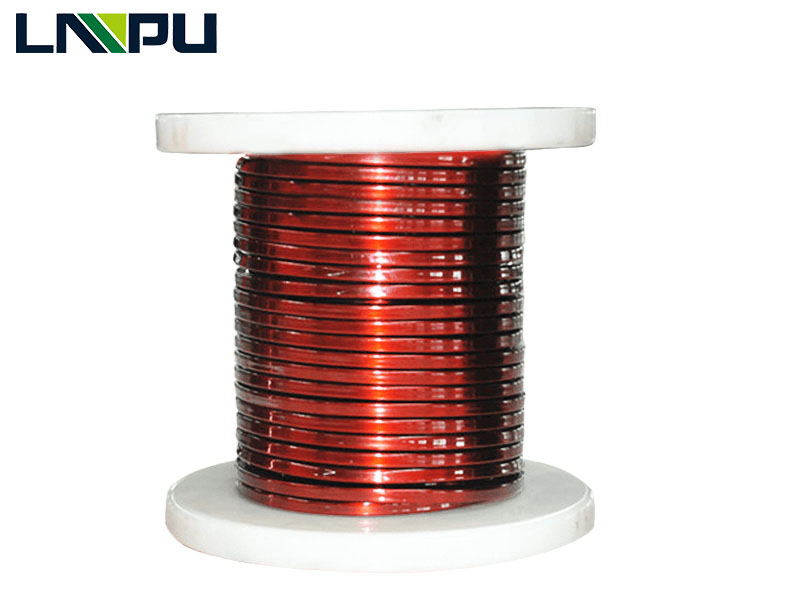

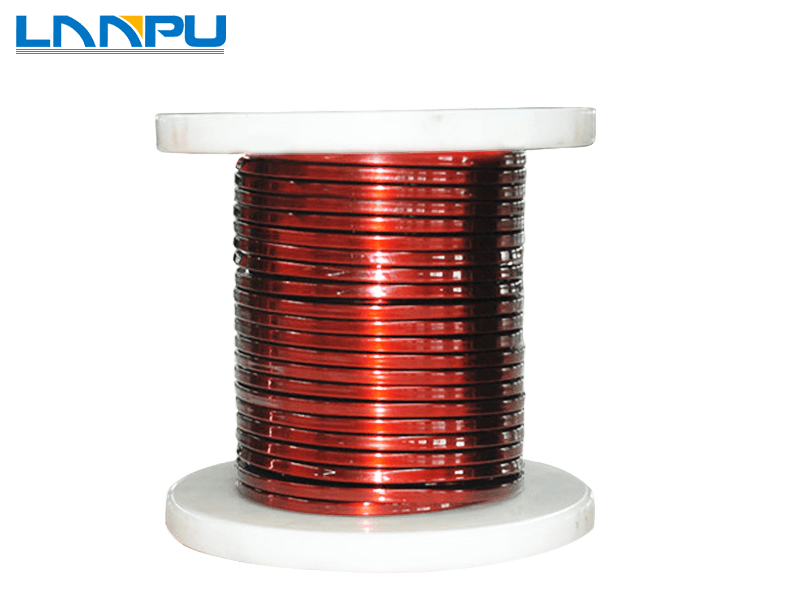

Enameled Square Copper Wire

DiameterRange (mm): a(b): 0.45-6.0mm
Temperature Class (C): 155, 180, 200, 220
Standard: IEC, NEMA, GB, JIS
Color: natural color, red, blue, green and so on
UL NO: E345303
Package: 30kg/50kg/150kg wooden spool, plastic spool or according to customer requirements.

We're here to help:Easy ways to get the answers you need.

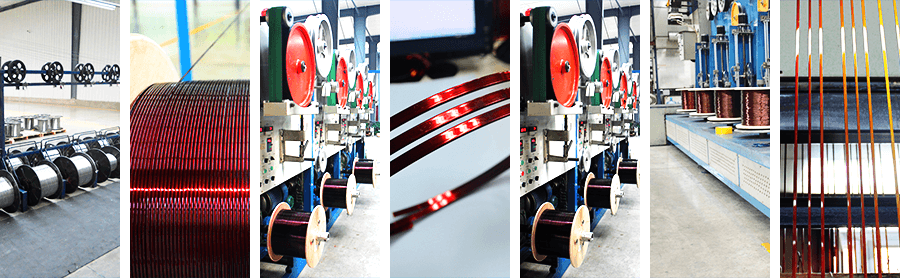

Production Process: Extrude & Draw Stretch the Thread Ultrasonic Clean; Panit Toast Spool

Size: a(b):0.4-7mm
Thermal Class: 155,180,200,220

Main Products:: Class 155 Polyester Enameled Square Copper Wire; Class 180 Polyesterimide/ Polyamide-iminde Enameled Square Copper Wire; Class 200 Modified Polyester Enameled Square Copper Wire; Class 200 Polyamide-imide Enameled Square Copper Wire; Class 220 Polyesterimide Enameled Square Copper Wire

Other Names:: Enameled Copper Winding Wires; Enamel Insulated Copper Wire; Double Enameled Copper Wire

Production Characteristics

1.Our Enameled Square Copper Wire has excellent insulation.
2.Our Enameled Square Copper Wire imports foreign technology and equipments cooperating with foreign experts and foreign companies.
3. Our Enameled Square Copper Wire has good waterproof performance.
4. Our Enameled Square Copper Wire’s insulation layer and its copper paste firmly. It has good environment resistant and good stability.
Insulation: ELANTAS
Intelligent on-line monitoring equipment

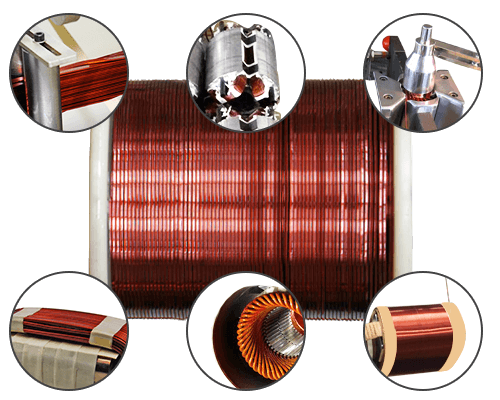

Application: The Application Of enameled square copper wire
Typical application include:
Transformers/Generators/Refrigeration systems/Class C generators/UPS power supplies/Electronic transformers.

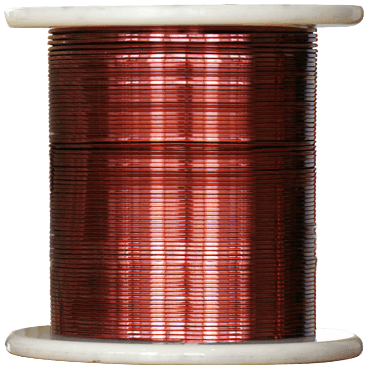

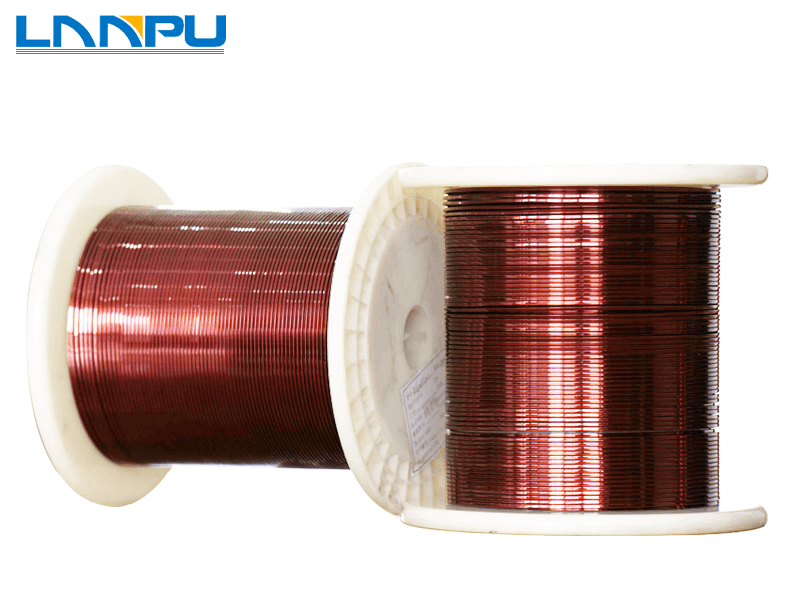

Packing: Plastic spool or wooden spool, flat wire length are customizable;
The usual spool specifications :
30kg/50kg/150kg wooden spool, plastic spool or according to customer requirements.
About The Packing, We Can According To Customers' Requirement!

Test of Main technical

The following is mian technical test;The set standards according to customers’ requirement. Besides,We Providing OEM,Please pay attention to that.

Item	Requirement of the standards
Stardards	MW36-A IEC60317-0-2， MW36-C
Electrical resistivity	0.017241/0.02785Ω mm²/m
Breakdown voltage	over1000/2000V
Heat shock	The minimum Heat shock temperature 200/220/240℃
Resistance to solvents	Standard solvent.Use a pencil of hardness”2H”the coating shall not be removed
Cut Through	320,360,400℃, 2mins not break down
