Enameled Flat Aluminum Wire for EV Drive Motors

We're here to help:Easy ways to get the answers you need.

Production Process: Extrusion & Drawing Wire Stretching Ultrasonic Cleaning; Coating Curing Spooling

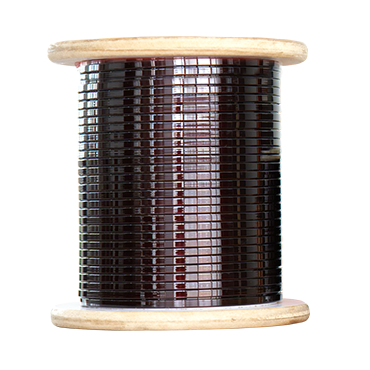

Enameled Flat Aluminum Wire

New energy vehicle enameled flat aluminum wire

What Is Enameled Flat Aluminum Wire?: Enameled flat aluminum wire for EV drive motors is a rectangular aluminum magnet wire with an insulating enamel coating. It is designed for electric motor windings, generators, inverters and other electromagnetic equipment that requires controlled conductor dimensions.; The rectangular conductor shape improves space utilization inside a winding slot. Compared with round wire, flat aluminum winding wire can provide a larger conductor area within a similar slot profile. This design helps engineers manage winding geometry, current density, insulation clearance and thermal performance.; LP supplies enamel-insulated aluminum wire for new energy vehicle motors and industrial electrical equipment. The final conductor size, enamel system and thermal class are selected according to the winding design and applicable product specification.

Production Characteristics

1. Efficient slot utilization: The rectangular conductor profile supports compact winding arrangements and improved use of available slot space.
2. Reduced conductor mass: Aluminum has a lower density than copper, which can reduce winding weight when the conductor design meets the required electrical performance.
3. The enamel coating has good flexibility and adhesion, making it suitable for coil forming.
4. For inverter-fed EV drive motors, partial discharge inception voltage (PDIV), corona endurance and compatibility with the specified cooling oil must be validated for the selected insulation system and operating conditions.
Flexible winding design: Thickness and width can be selected to match slot geometry, insulation clearance and winding architecture.
Intelligent inline monitoring equipment. LP can review conductor dimensions, enamel build, thermal class, winding process and packaging requirements for electric vehicle motor projects.

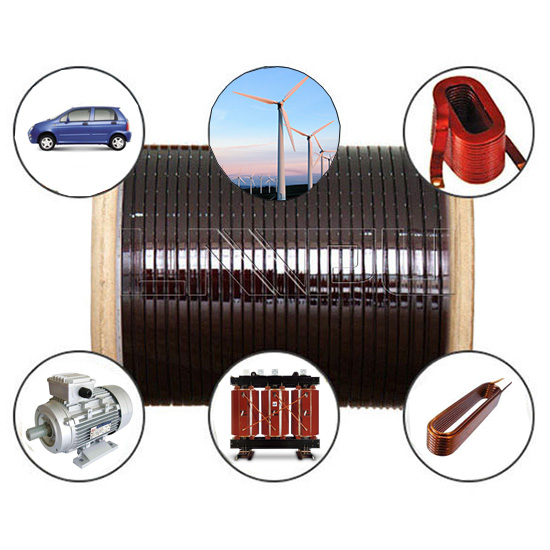

Applications: EV traction motor windings
New energy vehicle drive motors
Electric vehicle generator systems
Inverter-fed motor windings
Hybrid vehicle motor assemblies
Industrial generators
Dry-type and special transformers
Reactors and electromagnetic coils
Rectifiers and power conversion equipment
High-voltage motor winding systems

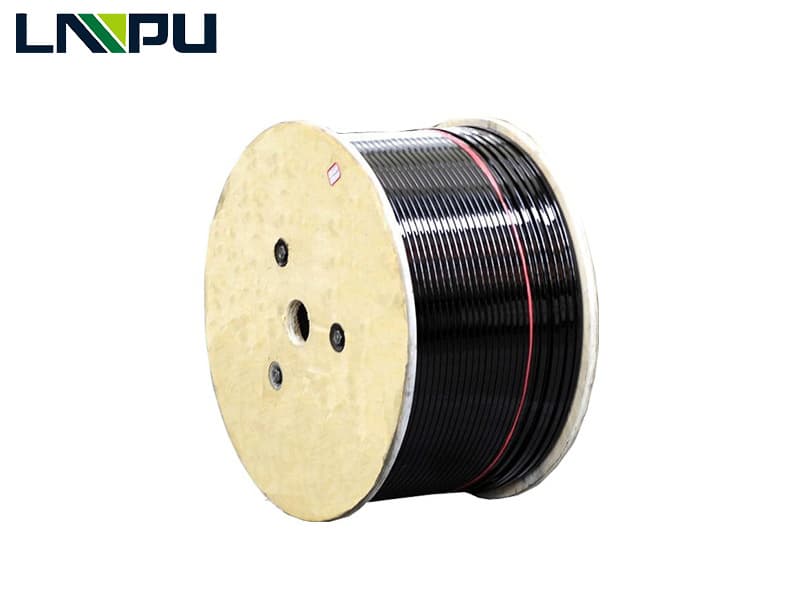

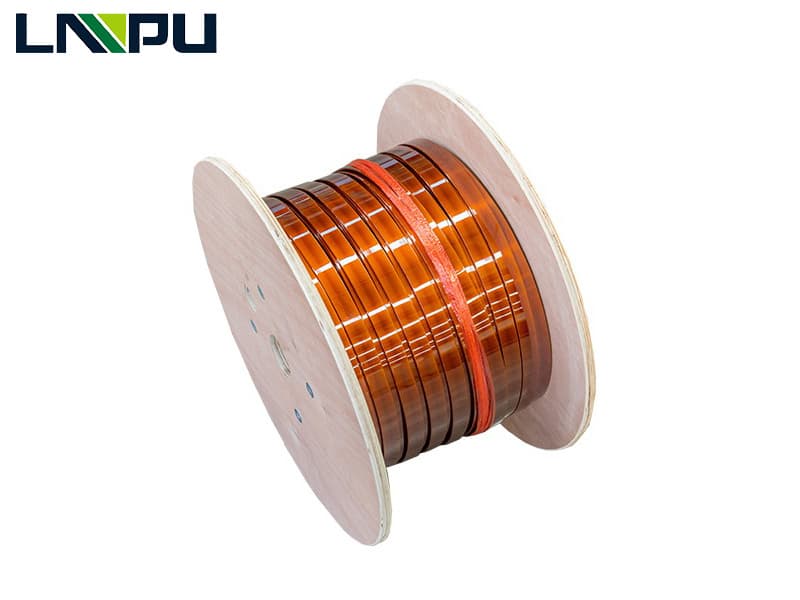

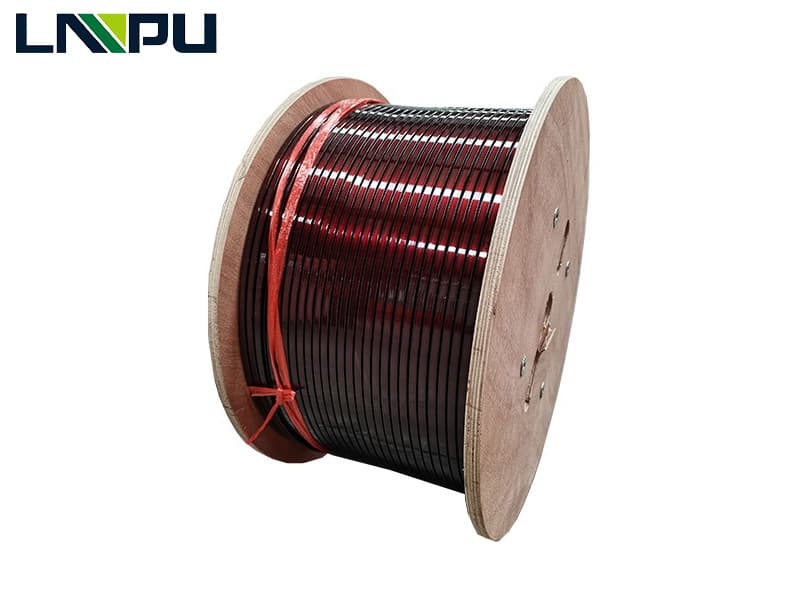

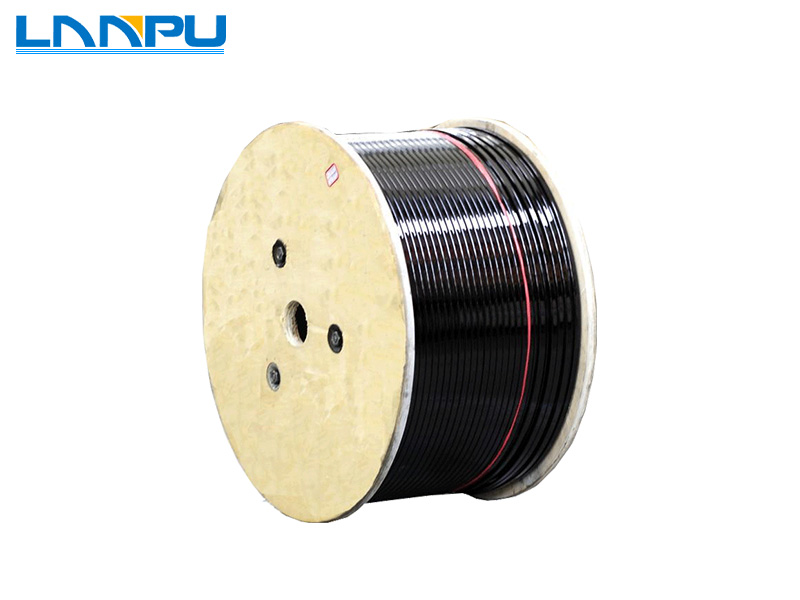

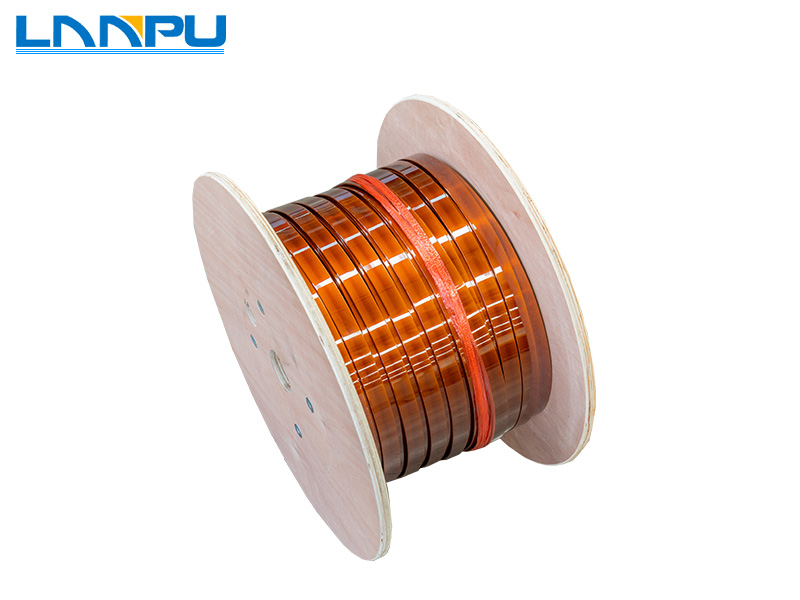

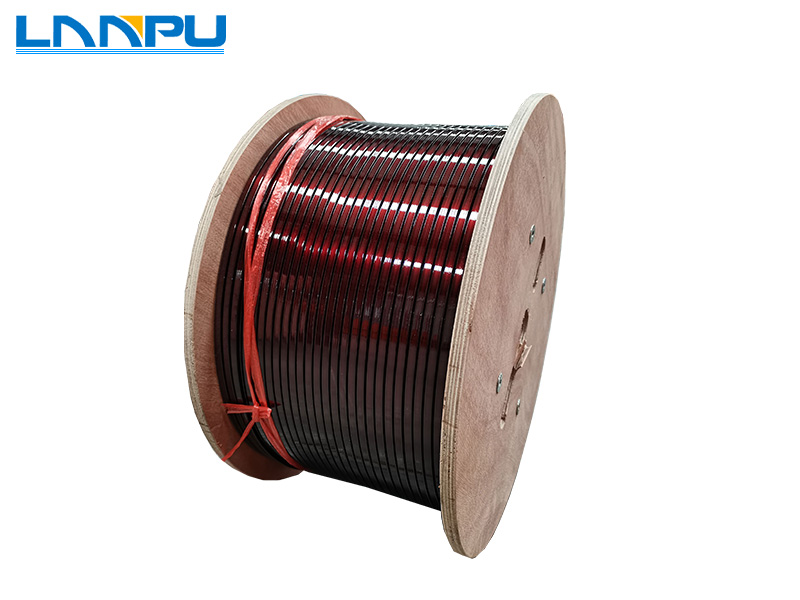

Packaging: Plastic or wooden spools are available. The length of the flat (rectangular) wire can be customized.
Standard spool specifications:
30 kg or 50 kg wooden bobbins, or other specifications according to customer requirements.
Packaging can be customized to meet customer requirements.

Main Technical Specifications:

Name	Enameled Rectangular Aluminum Wire
Conductor	EC-grade aluminum / electrical-grade aluminum rod
Shape	Flat / Rectangular
Dimensions	Thickness (a): 0.8–10.0 mm; Width (b): 2.0–25 mm
Cross-sectional Area	0.64–200 mm²
Thermal Class	180 (Class H), 200 (Class C), 220 (Class C+)
Insulation Thickness	G1, G2 or single build, heavy build
Standard	IEC / NEMA / JIS / GB
Certifications	UL, ISO, RoHS, REACH
Packaging	30–150 kg plywood spools (250 × 400 / 250 × 500 / 250 × 600 / 250 × 730)
