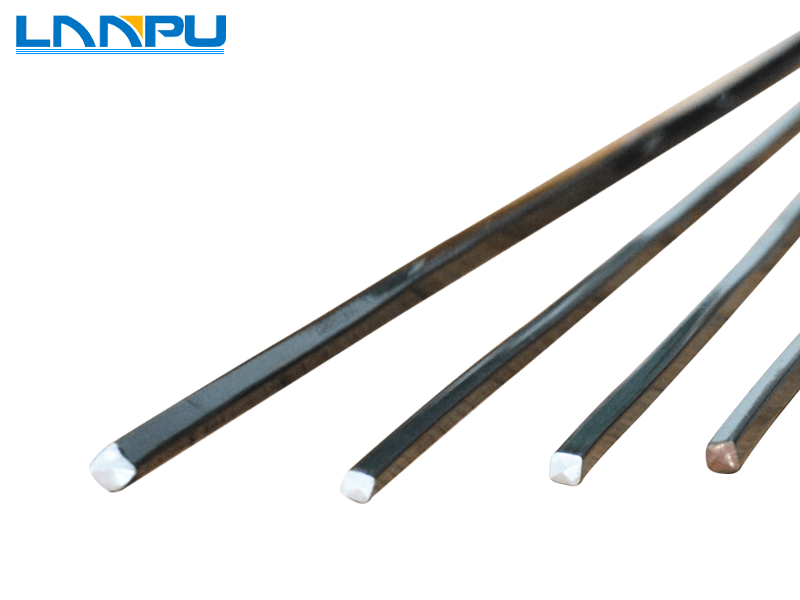

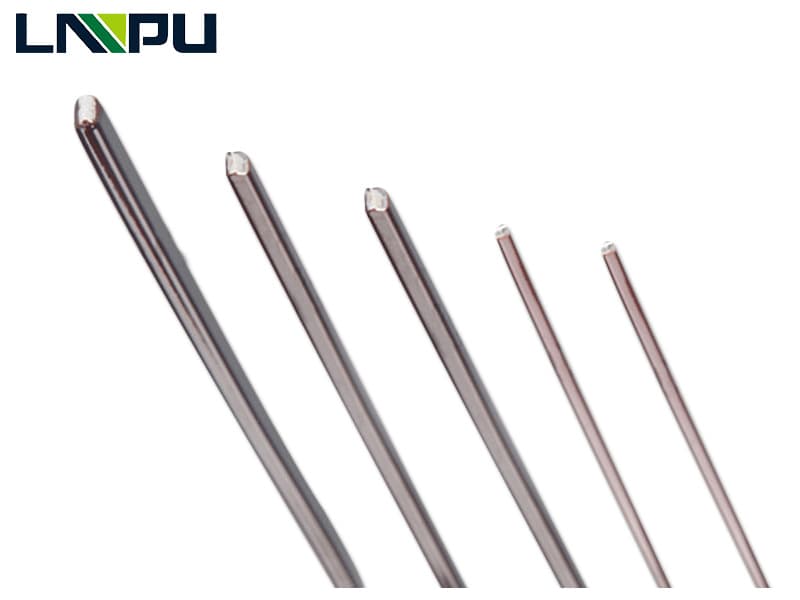

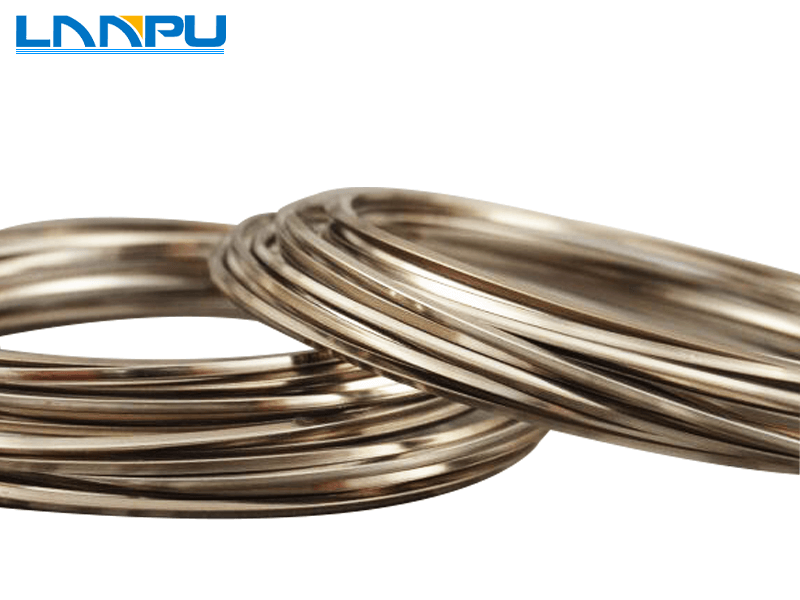

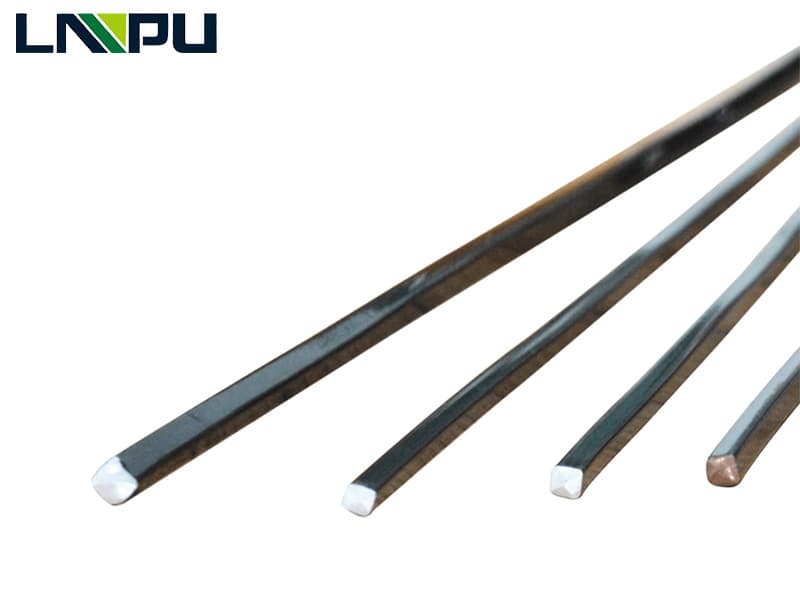

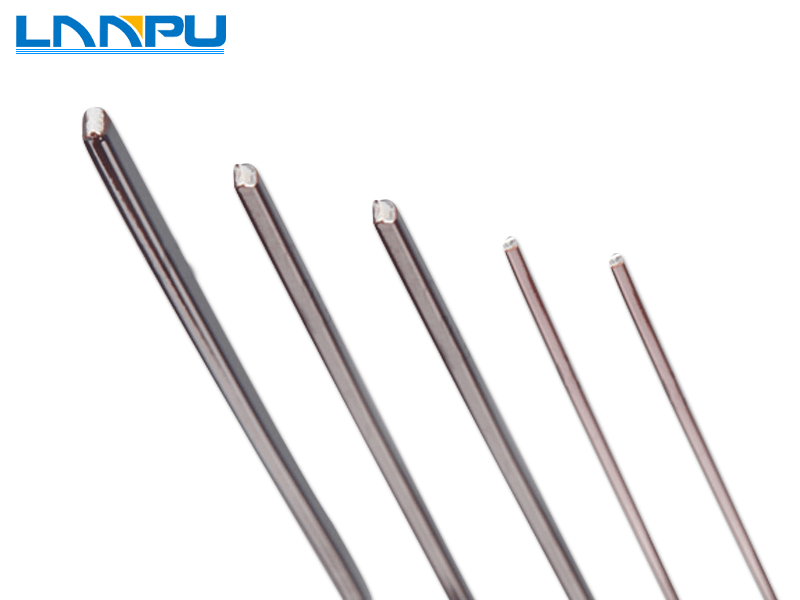

Enameled Square Aluminum Wire

Conductor side length: 1.2–9.1 mm
Thermal Class (C): 105°C, 120°C, 130°C, 155°C, 180°C, 200°C, 220°C, 240°C
Standard: IEC, NEMA, GB, JIS
Color: Available colors: natural (uncolored), red, blue, green, and others on request.
UL NO: E345303
Packaging: 30kg - 150kg wooden or plastic spools; other options are available on request.

We're here to help:Easy ways to get the answers you need.

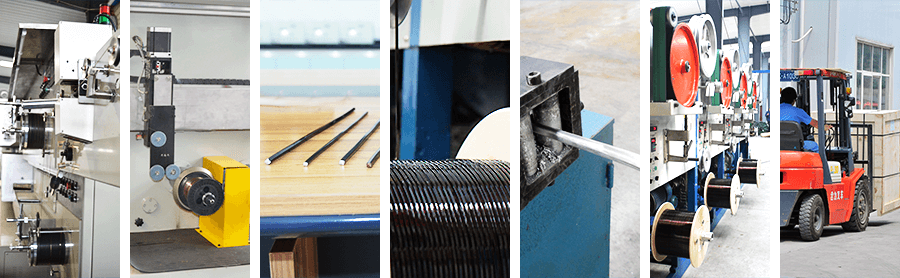

Production Process: Extruding Wire Drawing Ultrasonic Cleaning; Coating Curing Spooling

Conductor side length: 1.2–9.1 mm

Main Products:: Class 155 Polyester Enameled Square Aluminum Wire; Class 180 Polyesterimide/Polyamide Enameled Square Aluminum Wire; Class 200 Modified Polyester Enameled Square Aluminum Wire; Class 200 Polyamide-imide Enameled Square Aluminum Wire; Class 220 Polyesterimide Enameled Square Aluminum Wire

Other Names:: Enameled Aluminum Winding Wires; Enamel Insulated Aluminum Wire; Double Enameled Aluminum Wire

Production Characteristics

1. Enameled square aluminum wire consists of an aluminum conductor and an insulating enamel coating. The conductor is annealed, coated and cured under controlled conditions.
2. Enamel provides electrical insulation. Thermal class does not establish flame retardancy or electromagnetic shielding; mechanical properties depend on conductor temper and the insulation system.
3. Aluminum has approximately 30% of the density of copper at equal volume. Winding weight and cost depend on conductor dimensions, required resistance and the winding design.
4. Our Enameled Square Aluminum Wire has good stability and excellent heat resistance.
Insulation: ELANTAS
Intelligent on-line monitoring equipment

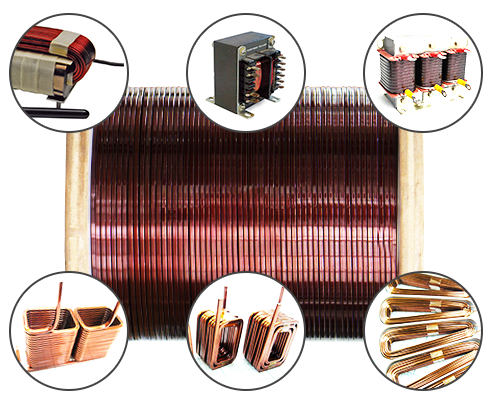

Application: Applications Of enameled square aluminum wire
Typical applications include:
Transformers / Generators / Refrigeration systems / Class C generators / UPS power supplies / Electronic transformers.

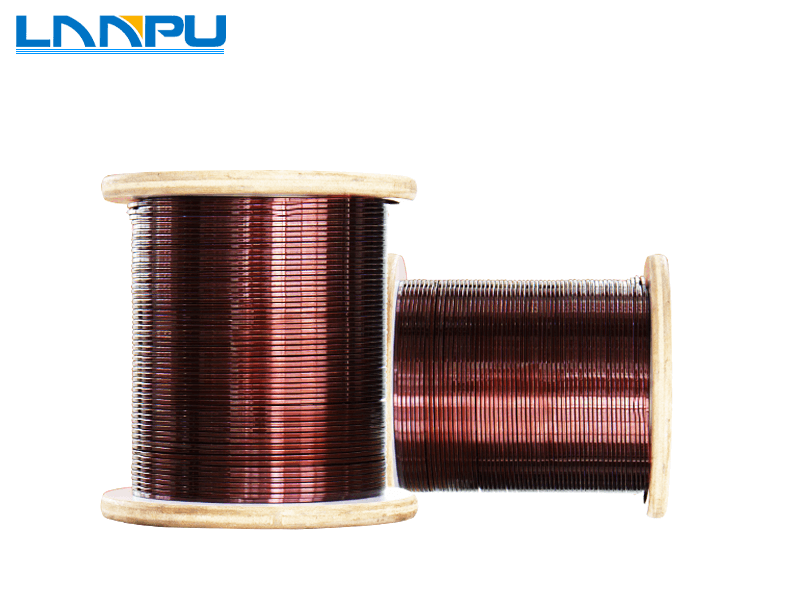

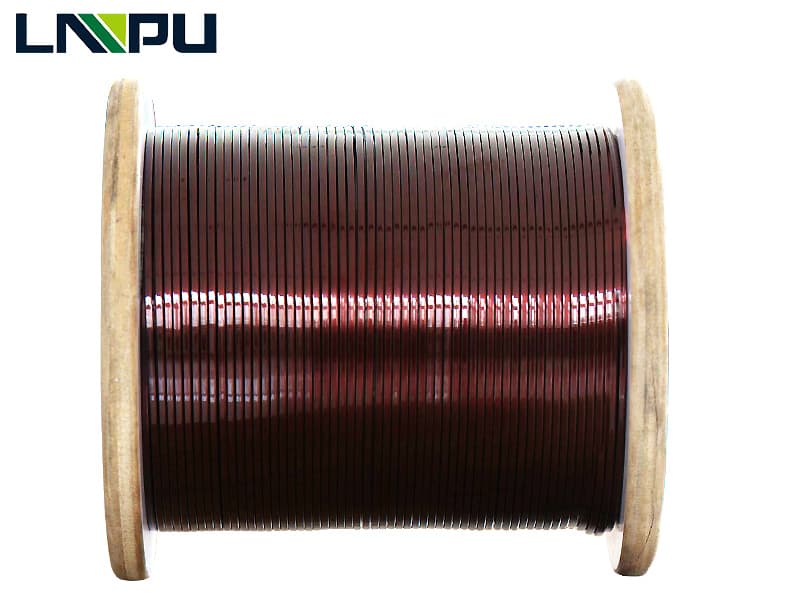

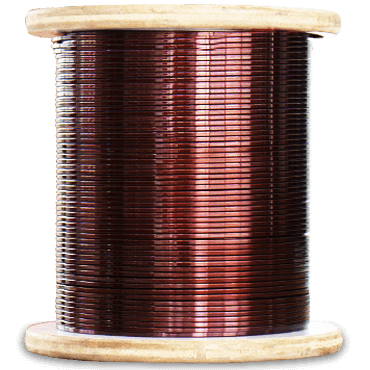

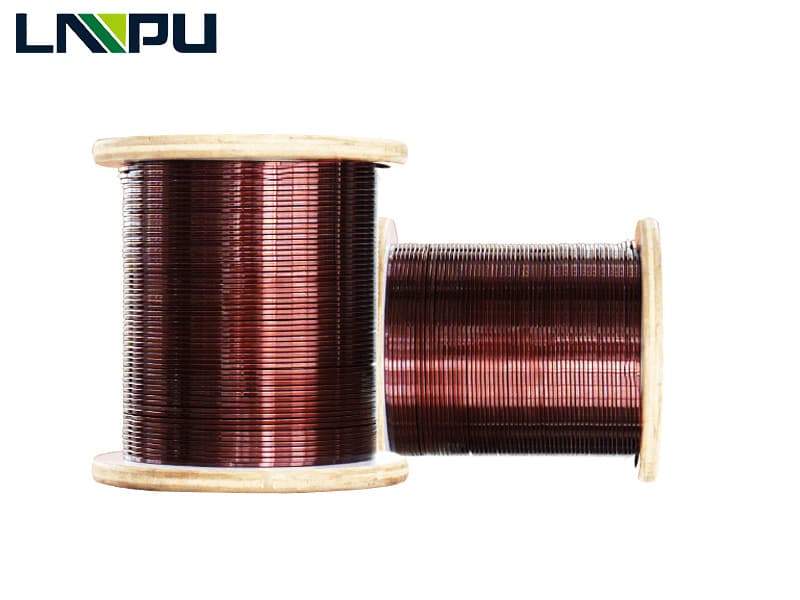

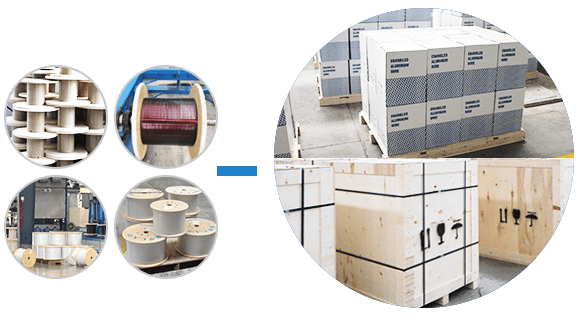

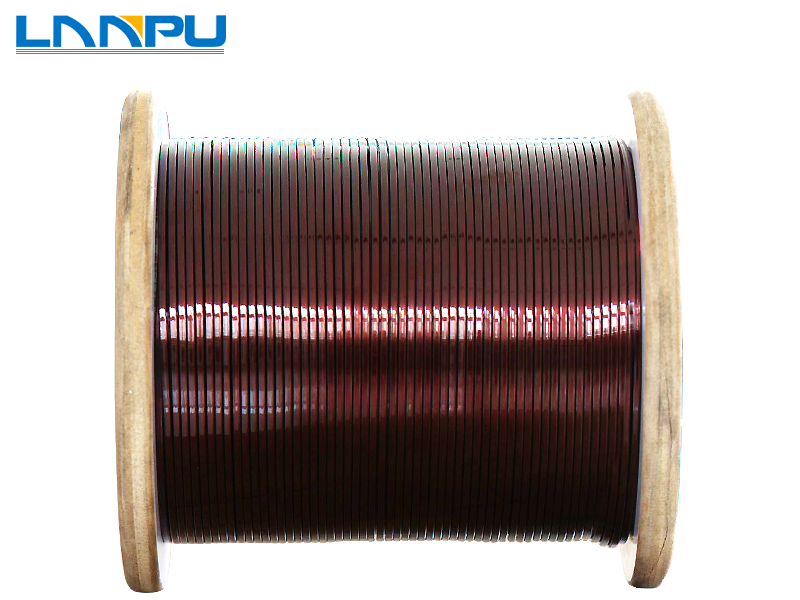

Packing: Plastic spool or wooden spool, square wire length is customizable;
The usual spool specifications:
30kg - 150kg wooden or plastic spools; other options are available on request.
Packaging can be customized to customer requirements.

Main Technical Tests:

Test conditions and acceptance limits depend on conductor dimensions, enamel build and insulation system and are agreed in the product specification.

Name	Enameled Square Aluminum Winding Wire
Conductor	Aluminum
Dimension	Thickness(a)/Width(b):1.2-9.1mm
Thermal Class	105°C, 120°C, 130°C, 155°C, 180°C, 200°C, 220°C, 240°C
Insulation Thickness:	G1,G2 or single build, heavy build
Standard	IEC 60317-16, 60317-16/28; MW36 60317-29 BS6811, MW18 60317-18, MW20 60317-47

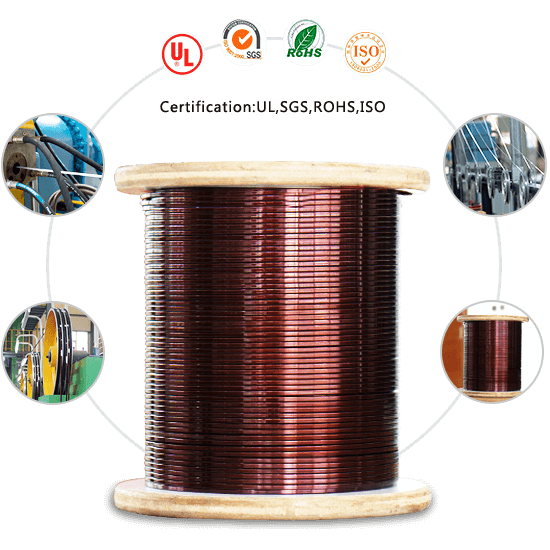

Certificate	UL
Packing	30kg - 150kg wooden or plastic spools; other options are available on request (250400 / 250500/ 250600/ 250730)
