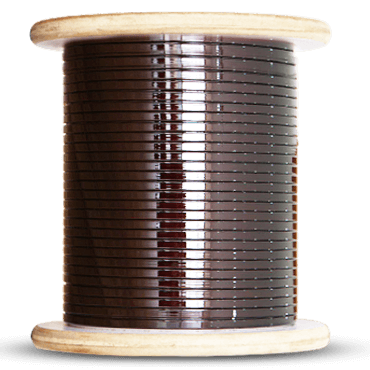

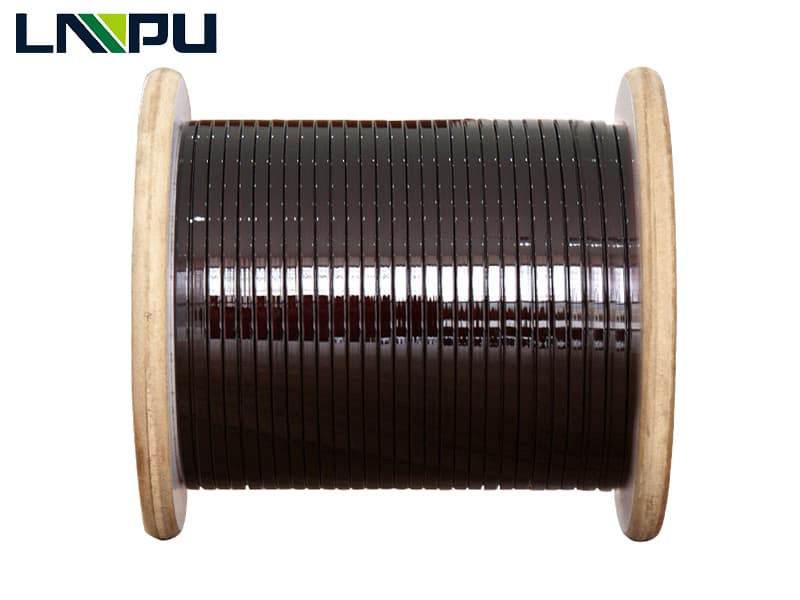

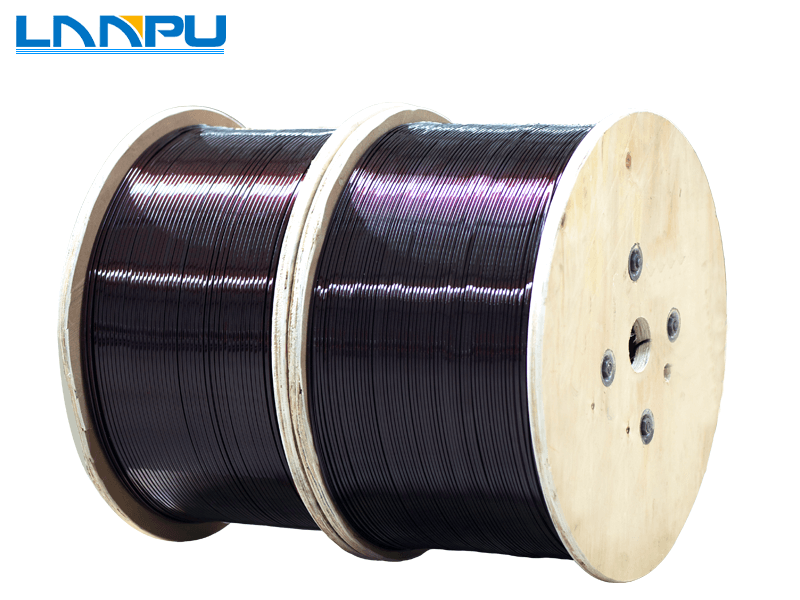

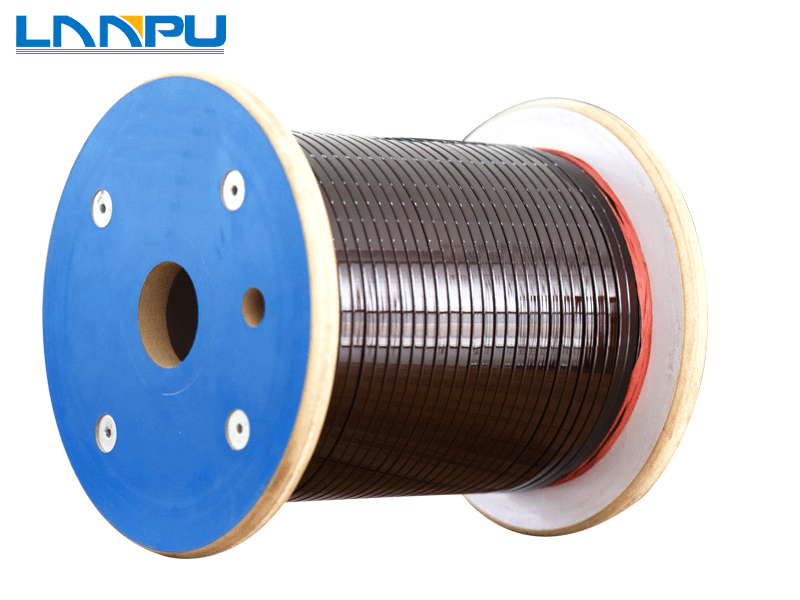

Enameled Flat(Rectangular) Aluminum Wire

Conductor thickness and width: a: 0.8–10.0 mm; b: 2.0–25 mm
Thermal Class: 105°C, 120°C, 130°C, 155°C, 180°C, 200°C, 220°C, 240°C
Standard: IEC, NEMA, GB, JIS
Color: Available colors: natural (uncolored), red, blue, green, and others on request.
UL File No.: E345303
Packaging:: 30kg - 150kg wooden bobbin / plywood spool and other options are available on request.

We're here to help:Easy ways to get the answers you need.

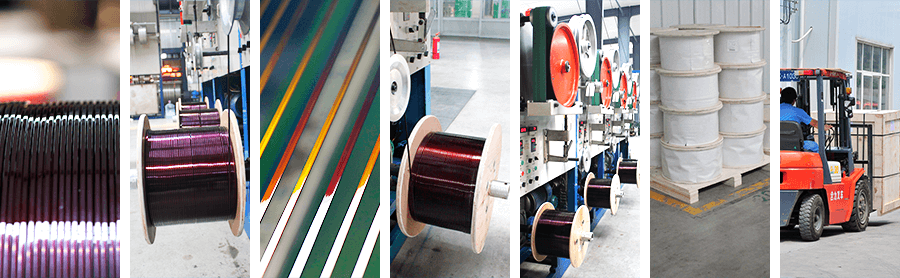

Production Process: Extrude & Draw Wire Drawing Ultrasonic Cleaning; Coating Curing Spooling

enameled flat aluminum wire

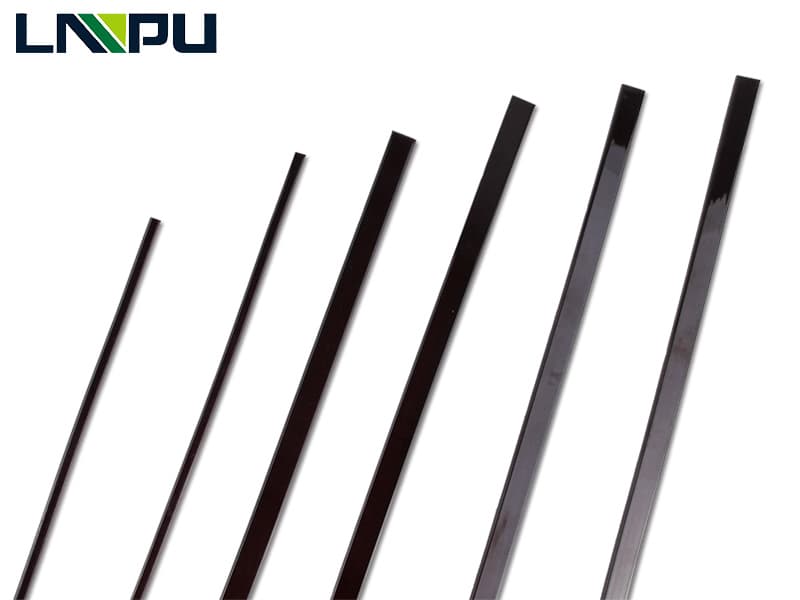

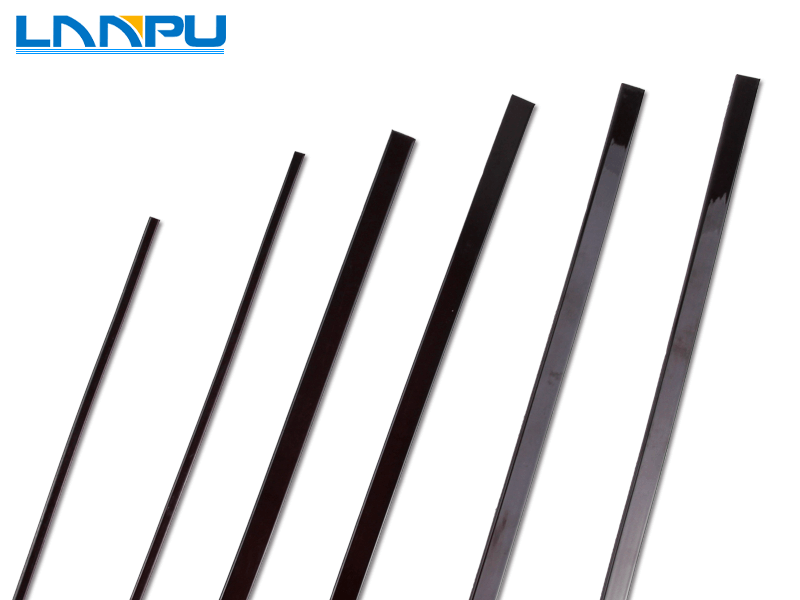

Size: conductor thickness a: 0.8–10.0 mm; width b: 2.0–25 mm

Hot Products:: Class 155 Polyester Enameled Flat（Rectangular) Aluminum Wire; Class 180 Polyesterimide/Polyamide Enameled Aluminum Flat（Rectangular）Wire; Class 200 Modified Polyesterimide Enameled Aluminum Flat（Rectangular）Wire; Class 200 Polyamide-imide Enameled Aluminum Flat（Rectangular）Wire; Class 220 Polyesterimide Enameled Aluminum Wire

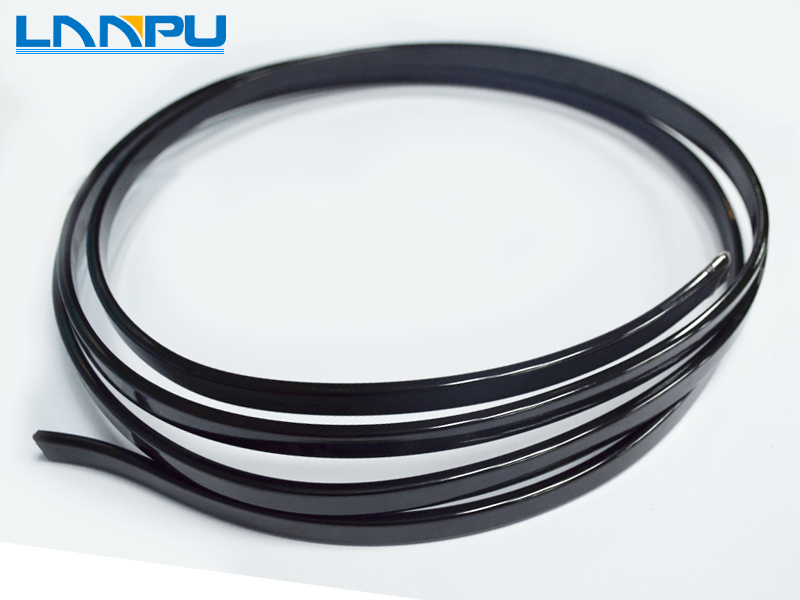

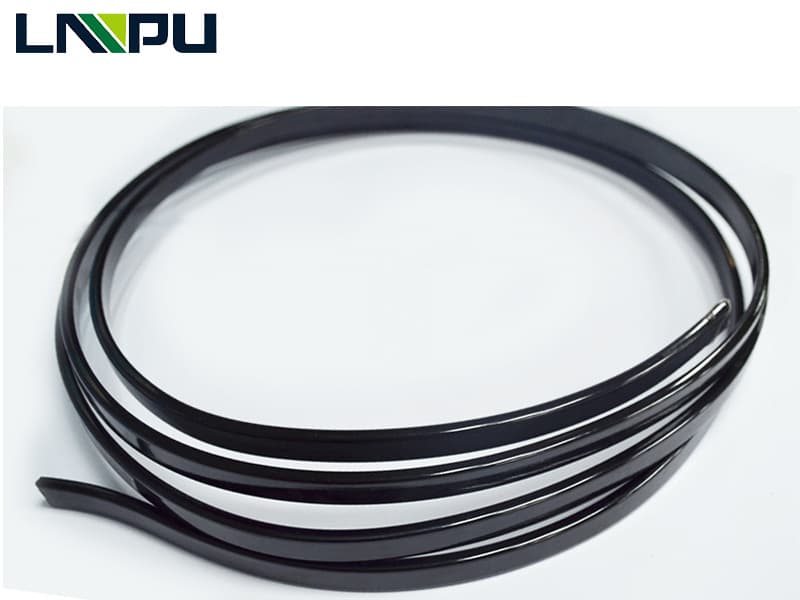

What is enameled flat aluminum wire?: Enameled flat aluminum wire is a rectangular aluminum conductor coated with insulating enamel, widely used in transformers, motors, and other electrical equipment for efficient winding and electrical insulation.

Production Characteristics

1, Our Enameled Flat（Rectangular）Aluminum Wire has good heat resistance, high solvent resistance and excellent hydrolytic resistance.
2.Our Enameled Flat（Rectangular）Aluminum Wire has good corrosion resistance, good scuff resistance, excellent flexibility and adhesion.
3, Our Enameled Flat（Rectangular）Aluminum Wire has good conductivity and smooth surface processed by advanced extrusion equipment.
4. Thermal classes: 105°C, 120°C, 130°C, 155°C, 180°C, 200°C, 220°C, 240°C. A heat-shock test may use 240°C where specified for the selected insulation system. Heat-shock temperature is a short-duration laboratory test condition, not the continuous operating temperature.
Insulation: ELANTAS
Intelligent on-line monitoring equipment

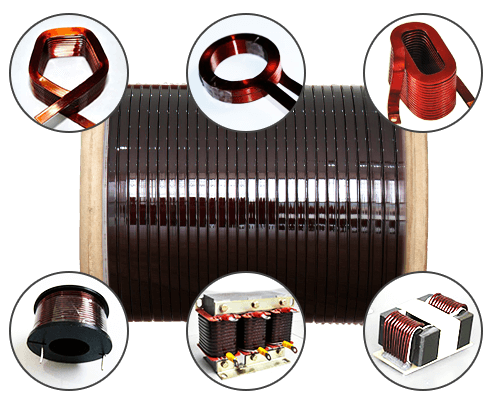

Application: Applications Of enameled flat（Rectangular）aluminum wire
Typical applications include:
Dry transformers/ Special transformers/Welding machines/Rectifiers /Reactors/Other large and low-voltage electromagnetic windings

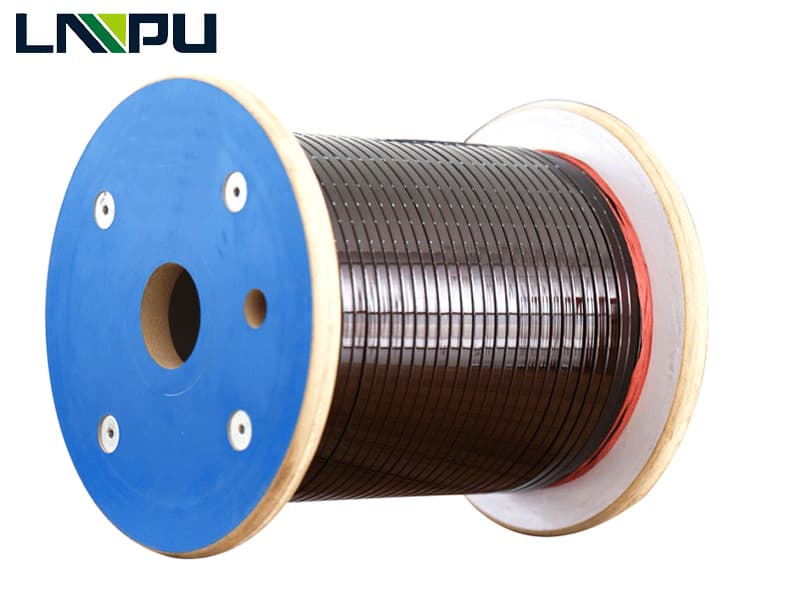

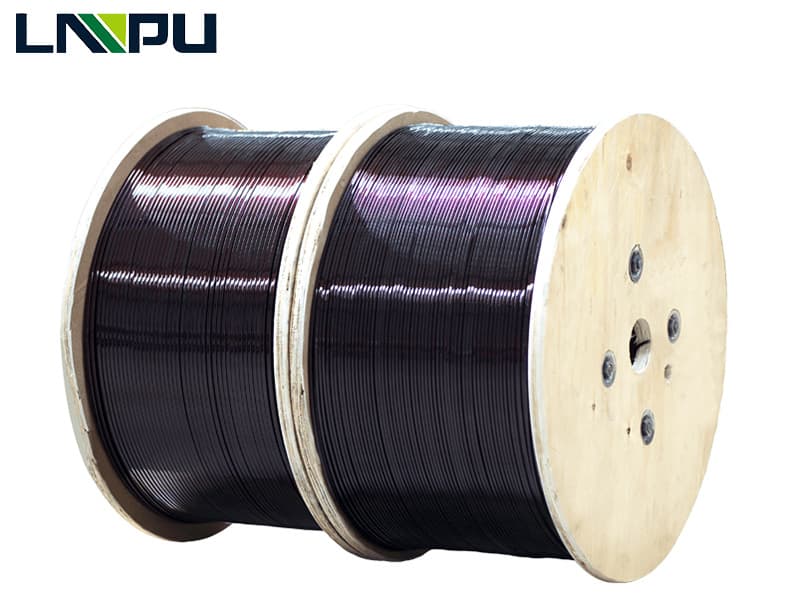

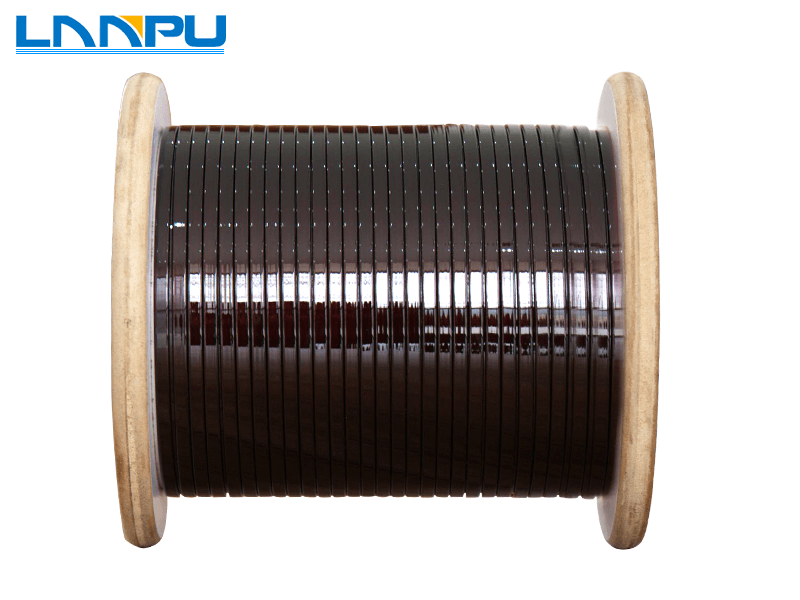

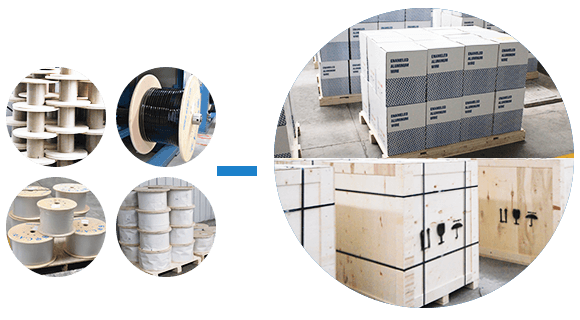

Packing: Plastic spool or wooden spool, flat（Rectangular）wire length are customizable;
The usual spool specifications :
30kg - 150kg wooden bobbin / plywood spool or according to customer requirements.
Packaging can be customized to meet customer requirements.

Main Technical Tests:

Test conditions and acceptance limits depend on conductor size, enamel build and insulation system and are agreed in the product specification.

Name	Enameled Rectangular Aluminum Wire
Conductor	EC-grade aluminum / electrical-grade aluminum rod
Shape	Flat / Rectangular
Dimension	Thickness(a):0.8-10.0mm; Width(b):2.0-25mm
Cross Section	0.16 mm² – 250 mm²
Thermal Class	105°C, 120°C, 130°C, 155°C, 180°C, 200°C, 220°C, 240°C
Insulation Thickness:	G1,G2 or single build, heavy build
Standard	IEC / NEMA / JIS / GB sizes

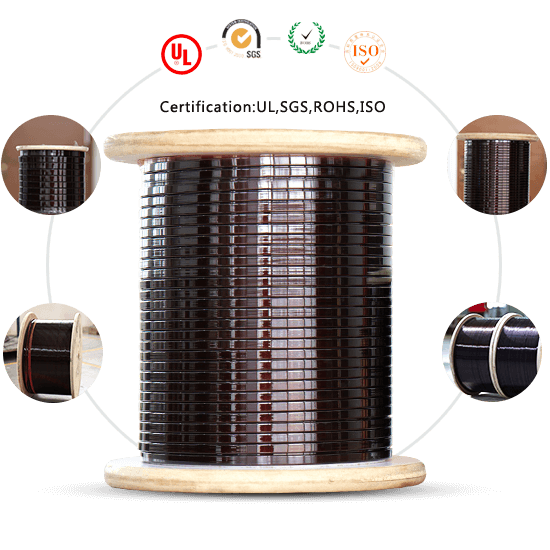

Certificate	UL, ISO, RoHS, REACH
Packing	30kg-150kg wooden bobbin / plywood spool (250400 / 250500/ 250600/ 250730)
